【Android】GalaxyTabのDockコネクタピンアサインのメモ　#SC01C　【Tips】

Numbers are reversed (printed in CAR PCB)

30 Ground (in HDMI and CAR too)
29
28 Audio R (in HDMI, CAR and maybe Video cable)
27 Audio L (in HDMI, CAR and maybe Video cable)
26
25
24
23 VIDEO Composite
22
21
20
19 (Red or G or B signal in HDMI)
18 (Green or R or B signal in HDMI)
17 (Blue or R or G signal in HDMI)
16 Ground
15 Ground
14
13 VIDEO measures 12K to ground (4,3K to ground in HDMI dock only if plug audio out cable, 7,25K to ground if connect CAR dock)
12
11
10 USB +4 (maybe + inside battery)
9 USB +4
8 (conect with 7 and +5V power from USB power supply 2A HDMI and CAR)
7 (connect to 8 and passthru to 7&8 in next connector in HDMI)
6 (Passthru to next connector in HDMI dock)
5
4 USB DATA- (Passthru to next connector in HDMI dock) (in CAR connect with 3 and connect via resistor 40k and 10k to ground to external +5V – recognize power supply ?)
3 USB DATA+ (Passthru to next connector in HDMI dock)
2 (Grounded in HDMI dock)
1 (Grounded in HDMI dock)
Radek

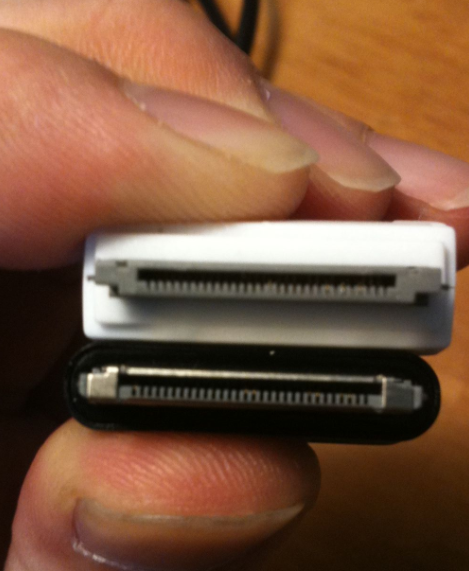

なんかiPhoneのDockコネクタが　無理すれば使えるらしいので　とりあえず　Seria行って確保しようと思います。
